4 core 25mm2 YTTW Mineral Insulated Flexible Fire Resistant Cable

wechat

Collect

产品编号 YTTW

DETAILS

Product description

1.Type and Name of Cable

Flexible metal sheath inorganic mineral insulation fire cable:YTTW,YTTWV,WD-YTTWY,BTTW,BTTRZ,RTTW,BTTE,BTWTZ,BTWTYZ,GAN-BTGZ,GAN-BTGY,HFTGB,HFTGBY

2.Standard of execution

JG/T313-2014 standard for the construction Industry of the Peoople's Republic of China "Rated Voltage 0.6/1kv and Inorganic Mineral Insulation Cables and Terminals under Metal Coils"

3.Application

It is mainly suitable for high-rise buildings,entertainment venues,and numerous construction projects that require high quality and high safety in large cities with a rated voltage of 750V.In the event of a fire,the power supply will not be cut off,and safety will be achieved.

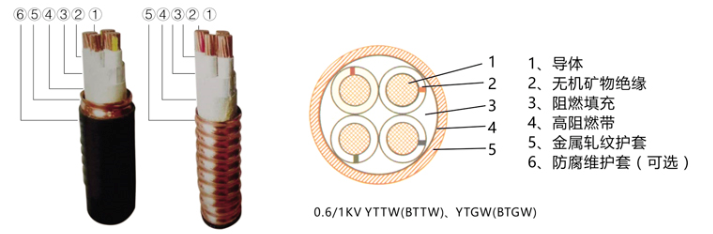

4.Cable Structure Chart

Note:

1.conductor

2.Inorganic mineral insulated

3.Flame retardant filling

4.High flame retardant zone

5.Metal gimmicks

6.Anti-corrosion maintenance kit(optional)

jinanmiaotai

Factory

Shandong Miaotai Special Cable Co.,Ltd is a modern enterprise that integrates the sale,production and service of wire and cable.Our products mainly include mineral cable,mineral fire cable,power cable,Acorn cable,control cable and new environmentai protection aluminum alloy cable and other cable products.The company has established a long-term and stable cooperative relationship with many agents and retailers.The company's products are popular in more than 30 provinces and cities in the North and South of the Yangtze River due to their variety,full specifications,excellence in quality,and good service.In addition,we cooperate with service logistics companies.Theability to transport is very guaranteed. We have the ability to design and produce all kinds of wires and cables according to your special requirements.
