Silicone rubber sheathed 1.5mm2 copper conductor 4 core electrical wire

wechat

Collect

产品编号 KGG4*1.5

DETAILS

Production scope

Silicone rubber insulated sheathed power cable data sheet

Nominal cross section conductor(mm2)	Conductor structure(mm)	Insulation thickness(mm)	Thickness of the sheath(mm)	approximate diameter(mm)
2*1.5	30/0.25	0.6	1.4	8
2*2.5	51/0.25	0.8	1.5	9.8
2*4	81/0.25	1.0	1.7	11
2*6	84/0.3	1.0	1.9	13
2*10	79/0.4	1.2	2.2	18
2*16	127/0.4	1.2	2.5	21
2*25	198/0.4	1.4	2.7	24
2*35	277/0.4	1.4	3.0	28
2*50	396/0.4	1.6	3.4	32
2*70	555/0.4	1.6	3.7	36
2*95	753/0.4	1.8	4.5	41
3*1.5	30/0.25	0.6	4.5	9.8
3*2.5	51/0.25	0.8	1.7	11.5
3*4	81/0.25	1.0	1.8	13
3*6	84/0.3	1.0	2.0	14.8
3*10	79/0.4	1.2	2.4	19
3*16	127/0.4	1.2	2.7	22
3*25	198/0.4	1.4	3.0	25.5
3*35	277/0.4	1.4	3.3	29
3*50	396/0.4	1.6	3.6	33.5
3*70	555/0.4	1.6	3.8	38
3*95	753/0.4	1.8	4.0	45
3*120	952/0.4	1.8	4.5	49
3*150	1188/0.4	2.0	5.0	55
3*185	1466/0.4	2.2	5.0	60
3*240	1901/0.4	2.4	5.0	68
32.5+11.5	51/0.25+30/0.25	0.8+0.6	1.8	13
34+12.5	81/0.25+49/0.25	1.0+0.8	2.0	15
36+14	84/0.3+81/0.25	1.0+1.0	2.2	17.5
310+16	79/0.4+84/0.3	1.2+1.0	2.4	22
316+110	127/0.4+79/0.4	1.2+1.2	2.6	24
325+116	198/0.4+127/0.4	1.4+1.2	2.8	28
335+125	277/0.4+127/0.4	1.4+1.2	3.3	33
350+125	396/0.4+198/0.4	1.6+1.4	3.6	38
370+135	555/0.4+277/0.4	1.6+1.4	3.8	43
395+150	753/0.4+396/0.4	1.8+1.6	4.2	48
3120+170	952/0.4+555/0.4	1.8+1.6	4.7	52
3150+195	1188/0.4+753/0.4	2.0+1.8	5.0	58
3185+1120	1466/0.4+952/0.4	2.2+1.8	5.0	65
3240+1150	1901/0.4+1188/0.4	2.4+2.0	5.0	73

Product description

type:YGC/KGG

standard:Q/HYX01-2012

working temperature:-60℃ to 180℃

application:suitable for high temperature environment,such as power generation,metallurgy,chemical industry electrical connection between using portable electric device.

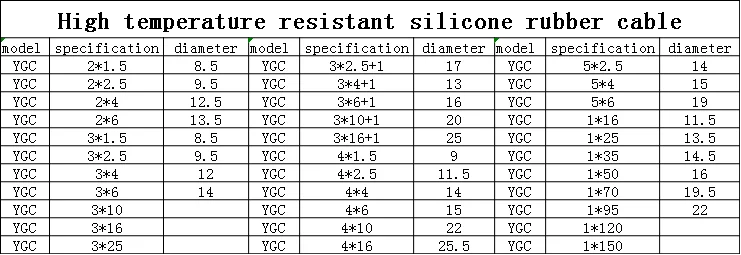

Data Table
