Product description

power cable:CU(AL)XLPE/PVC

standard:GB,IEC

rateds voltages:0.6/1KV-26/35KV

parmissible banding radius:

          single cable:[20(D+d)±5%]mm

          multi cable:[15(D+d±5%]mm

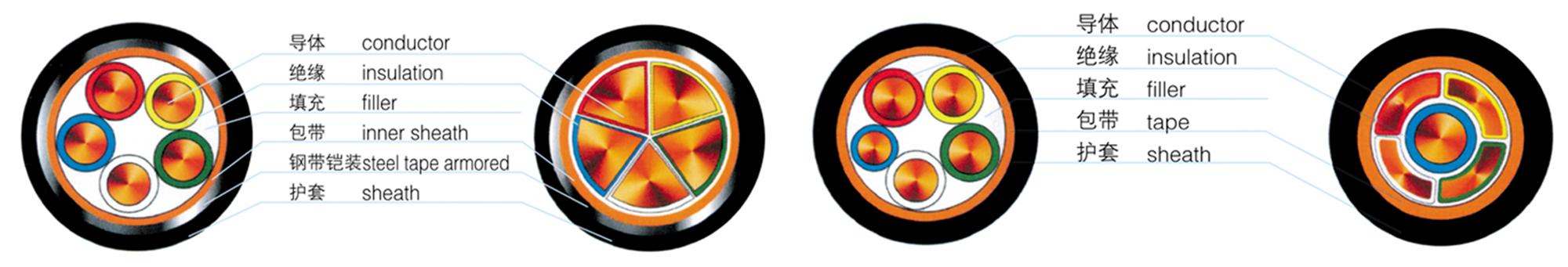

structure diagram:

Product introduction

Three core 0.6/1kv crosslinked polyethylene insulated PVC sheathed cable YJV/YJLV.

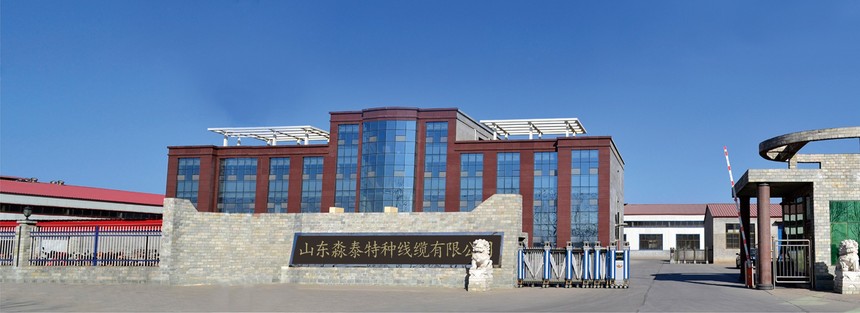

Factory

Shandong Miaotai Special Cable Co.,Ltd is a modern enterprise that integrates the sale,production and service of wire and cable.Our products mainly include mineral cable,mineral fire cable,power cable,Acorn cable,control cable and new environmentai protection aluminum alloy cable and other cable products.The company has established a long-term and stable cooperative relationship with many agents and retailers.The company's products are popular in more than 30 provinces and cities in the North and South of the Yangtze River due to their variety,full specifications,excellence in quality,and good service.In addition,we cooperate with service logistics companies.Theability to transport is very guaranteed. We have the ability to design and produce all kinds of wires and cables according to your special requirements.

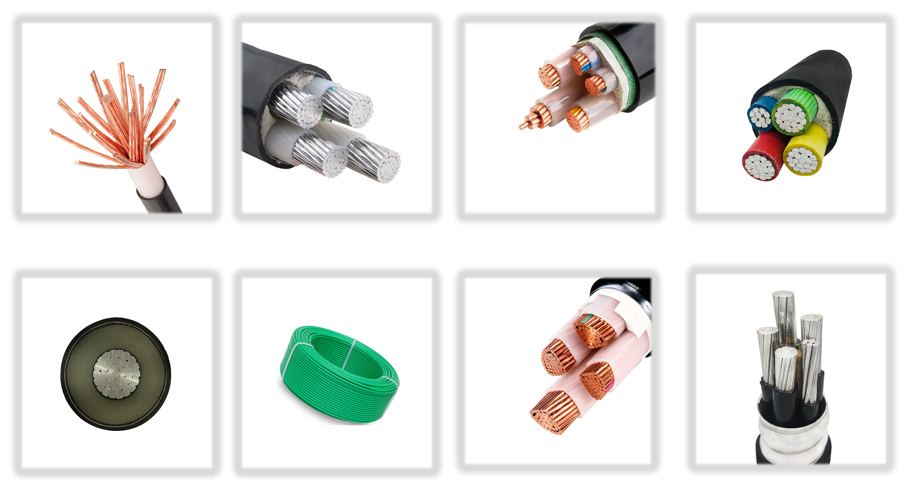

 Samples show

Testing

Case

Certificate

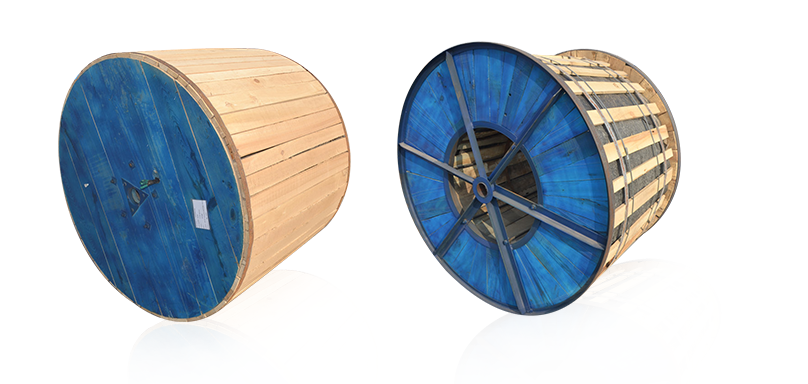

Packing

Contact
