0.6/1kv YJLV 120mm aluminum condutor 3+1 core PVC insulated power cable

wechat

Collect

产品编号 YJLV3*120+1

DETAILS

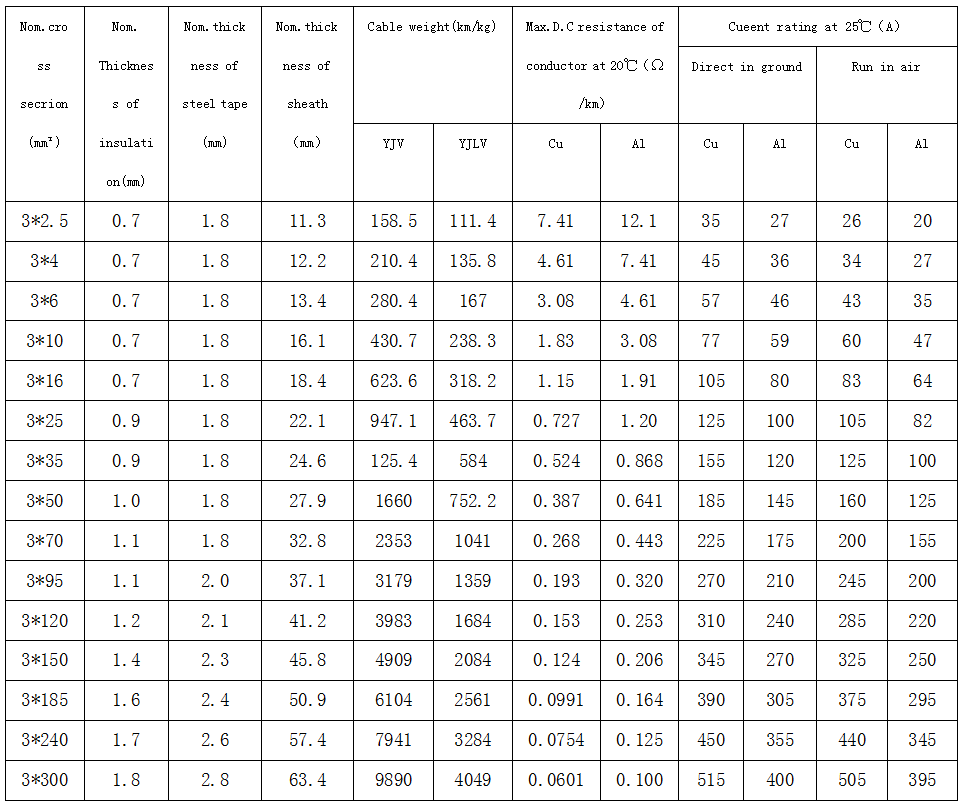

Three core 0.6/1kv cross-linked polyethylene insulated PVC sheathed power cable.(YJV/YJLV)

Nom.cross secrion(mm2)	Nom.thickness of insulation(mm)	Nom.thickness of steel tape(mm)	Nom.thickness of sheath(mm)	Cable weight(approx.)(km/kg)		Max.D.C,resistance of conductor at 20℃(Ω/km)		Current rating at 25℃
				Cable weight(approx.)(km/kg)		Max.D.C,resistance of conductor at 20℃(Ω/km)		Direct in ground		Run in air
				YJV	YJLV	Cu	Al	Cu	Al	Cu	Al
3*2.5	0.7	1.8	11.3	158.5	111.4	7.41	12.1	35	27	26	20
3*4	0.7	1.8	12.2	210.4	135.8	4.61	7.41	45	36	34	27
3*6	0.7	1.8	13.4	280.4	167	3.08	4.61	47	46	43	35
3*10	0.7	1.8	16.1	430.7	238.3	1.83	3.08	77	59	60	47
3*16	0.7	1.8	18.4	623.6	318.2	1.15	1.91	105	80	83	64
3*25	0.9	1.8	22.1	947.1	463.7	0.727	1.20	125	100	105	82
3*35	0.9	1.8	24.6	1254	584	0.524	0.868	155	120	125	100
3*50	1.0	1.8	27.9	1660	752.2	0.387	0.641	185	145	160	125
3*70	1.1	1.9	32.8	2353	1041	0.268	0.443	225	175	200	155
3*95	1.1	2.0	37.1	3179	1359	0.193	0.320	270	210	245	200
3*120	1.2	2.1	41.2	3983	1684	0.153	0.253	310	240	285	220
3*150	1.4	2.3	45.8	4909	2084	0.124	0.206	345	270	325	250
3*185	1.6	2.4	50.9	6104	2561	0.0991	0.164	390	305	375	295
3*240	1.7	2.6	57.4	7941	3284	0.0754	0.125	450	355	440	345
3*300	1.8	2.8	63.4	9890	4049	0.0601	0.100	515	400	505	395

jinanmiaotai

Product description

power cable:CU(AL)XLPE/PVC

standard:GB,IEC

rateds voltages:0.6/1KV-26/35KV

parmissible banding radius:

single cable:[20(D+d)±5%]mm

multi cable:[15(D+d±5%]mm

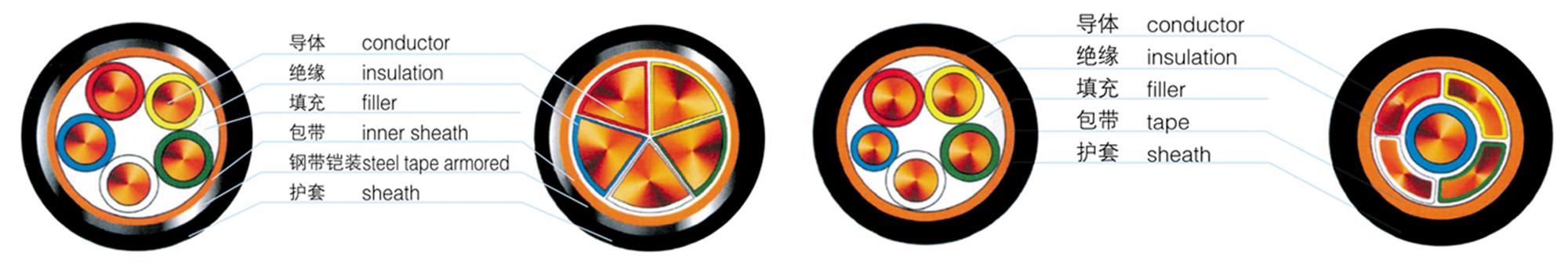

structure diagram:

.jpg

Product introduction

Three core 0.6/1kv crosslinked polyethylene insulated PVC sheathed cable YJV/YJLV.

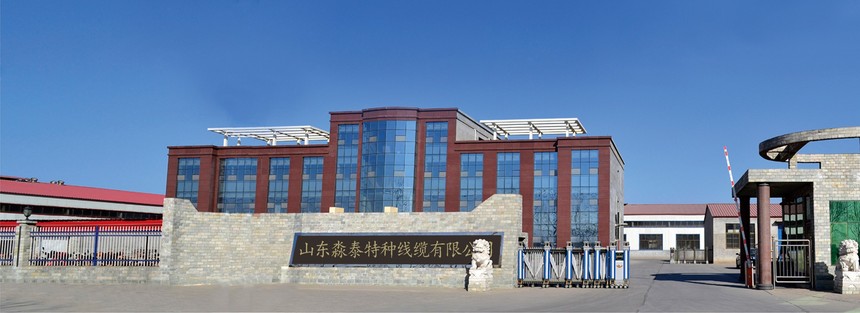

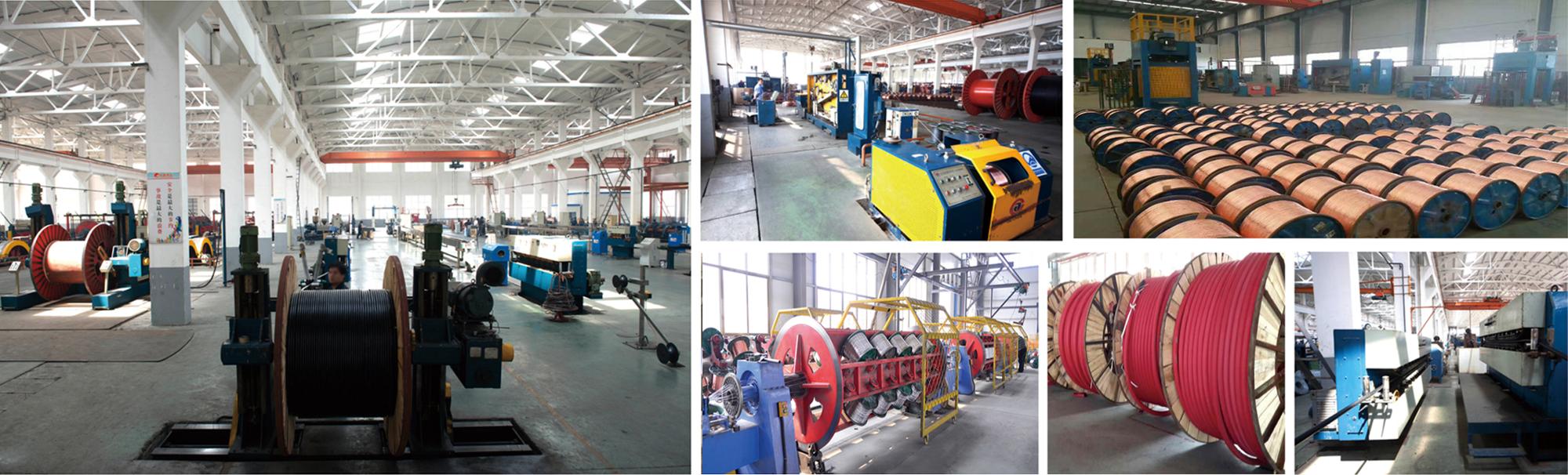

Factory

Shandong Miaotai Special Cable Co.,Ltd is a modern enterprise that integrates the sale,production and service of wire and cable.Our products mainly include mineral cable,mineral fire cable,power cable,Acorn cable,control cable and new environmentai protection aluminum alloy cable and other cable products.The company has established a long-term and stable cooperative relationship with many agents and retailers.The company's products are popular in more than 30 provinces and cities in the North and South of the Yangtze River due to their variety,full specifications,excellence in quality,and good service.In addition,we cooperate with service logistics companies.Theability to transport is very guaranteed. We have the ability to design and produce all kinds of wires and cables according to your special requirements.

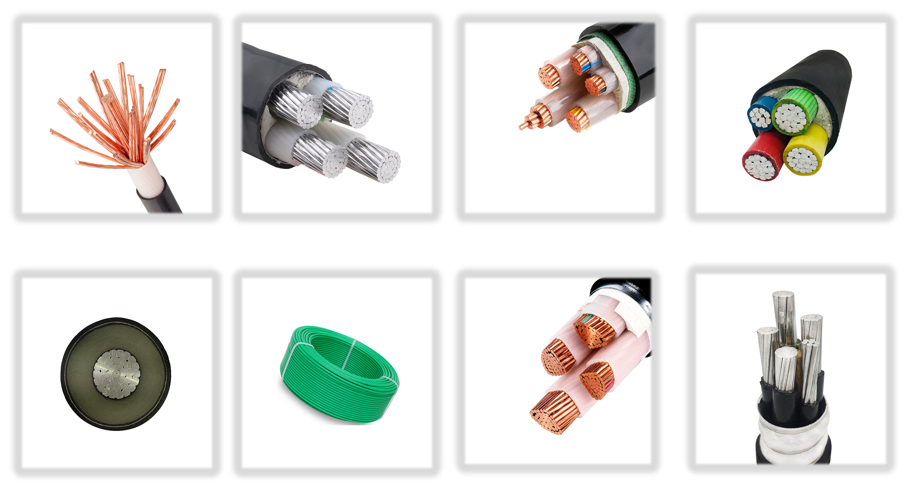

Samples show

We have a superb technology and professional technical personnel,the each products do precision.

.png

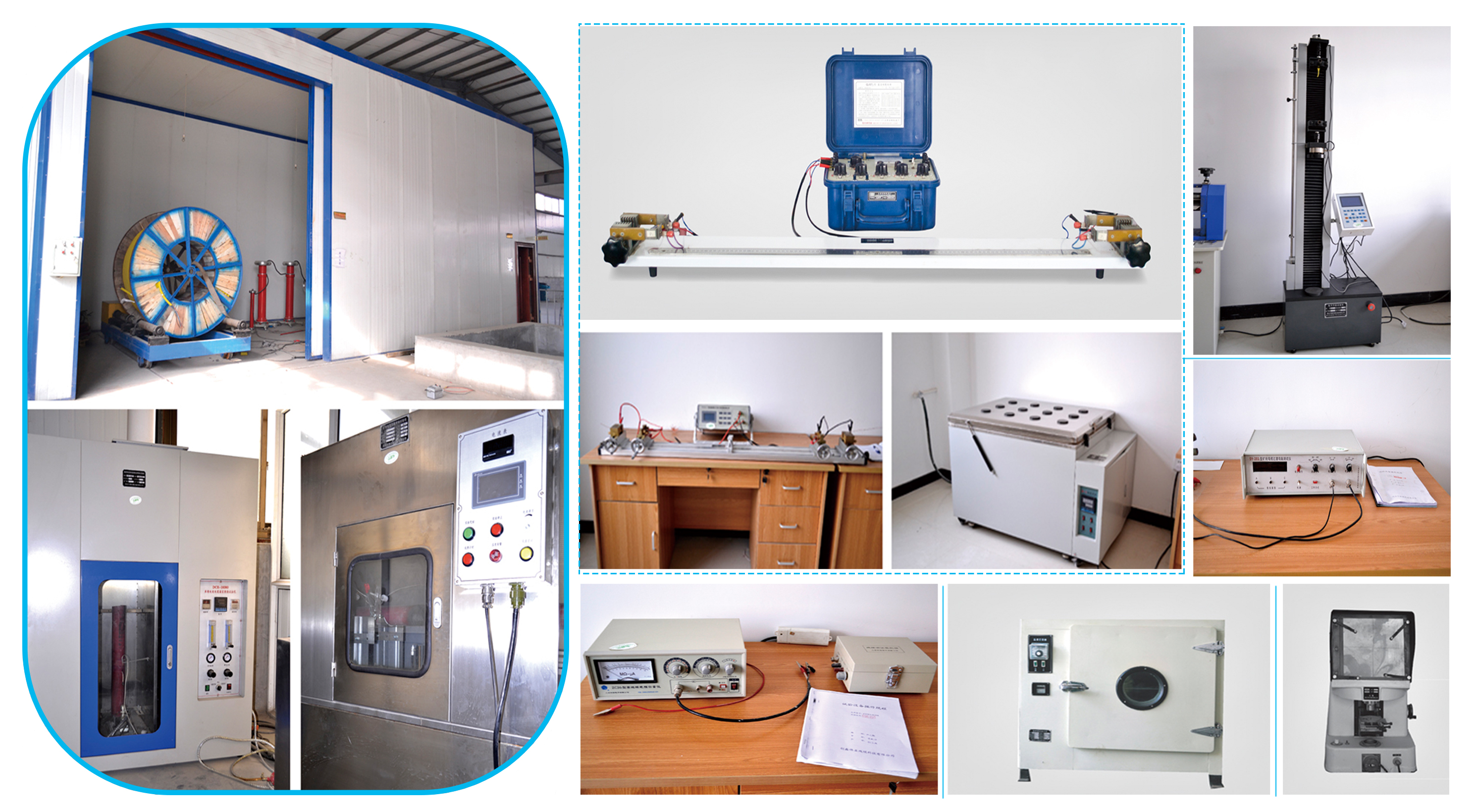

Testing

Our whole production process of all products of fine management and strict control,achieve "zero defact",ensure the customer satisfaction.

Case

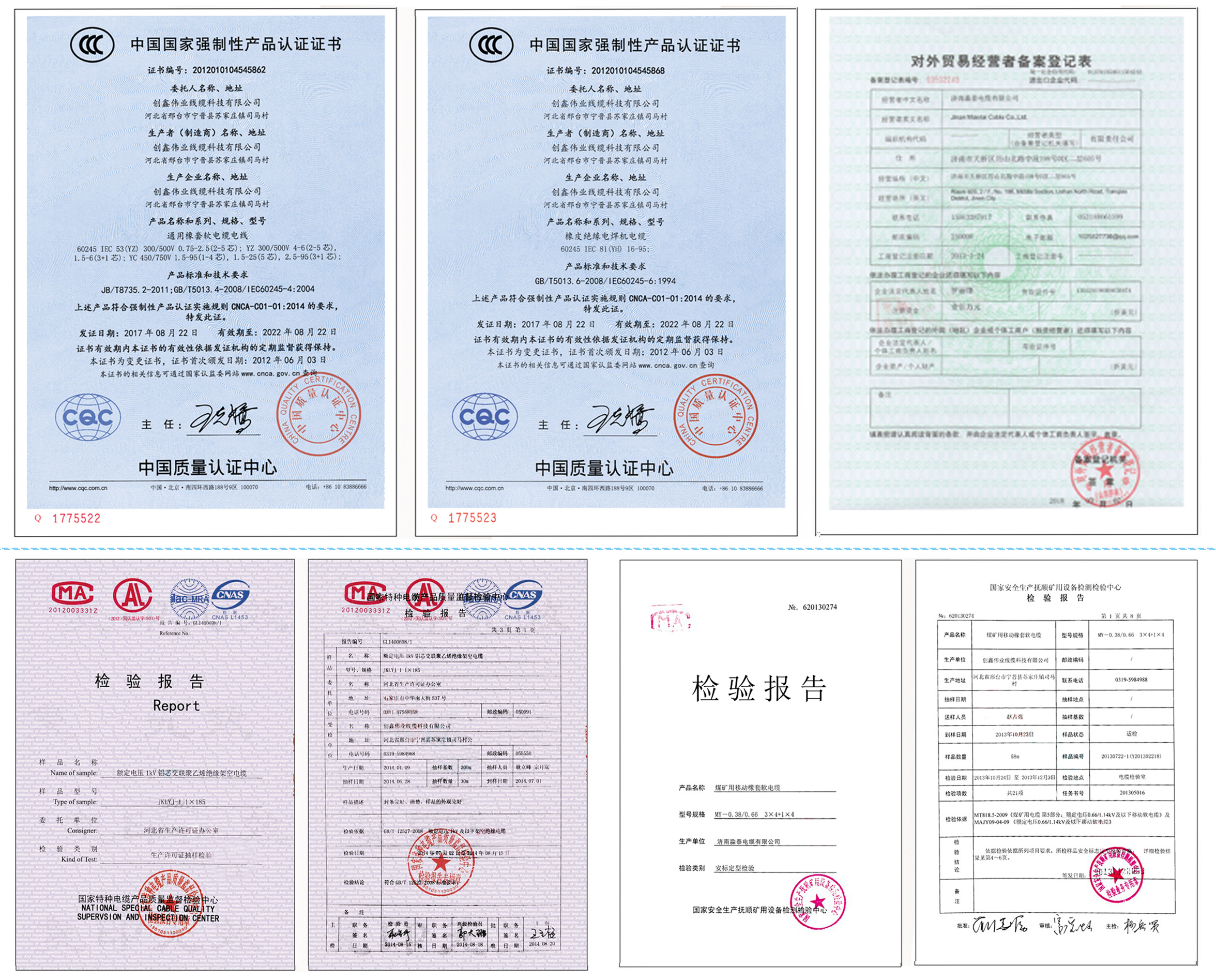

Certificate

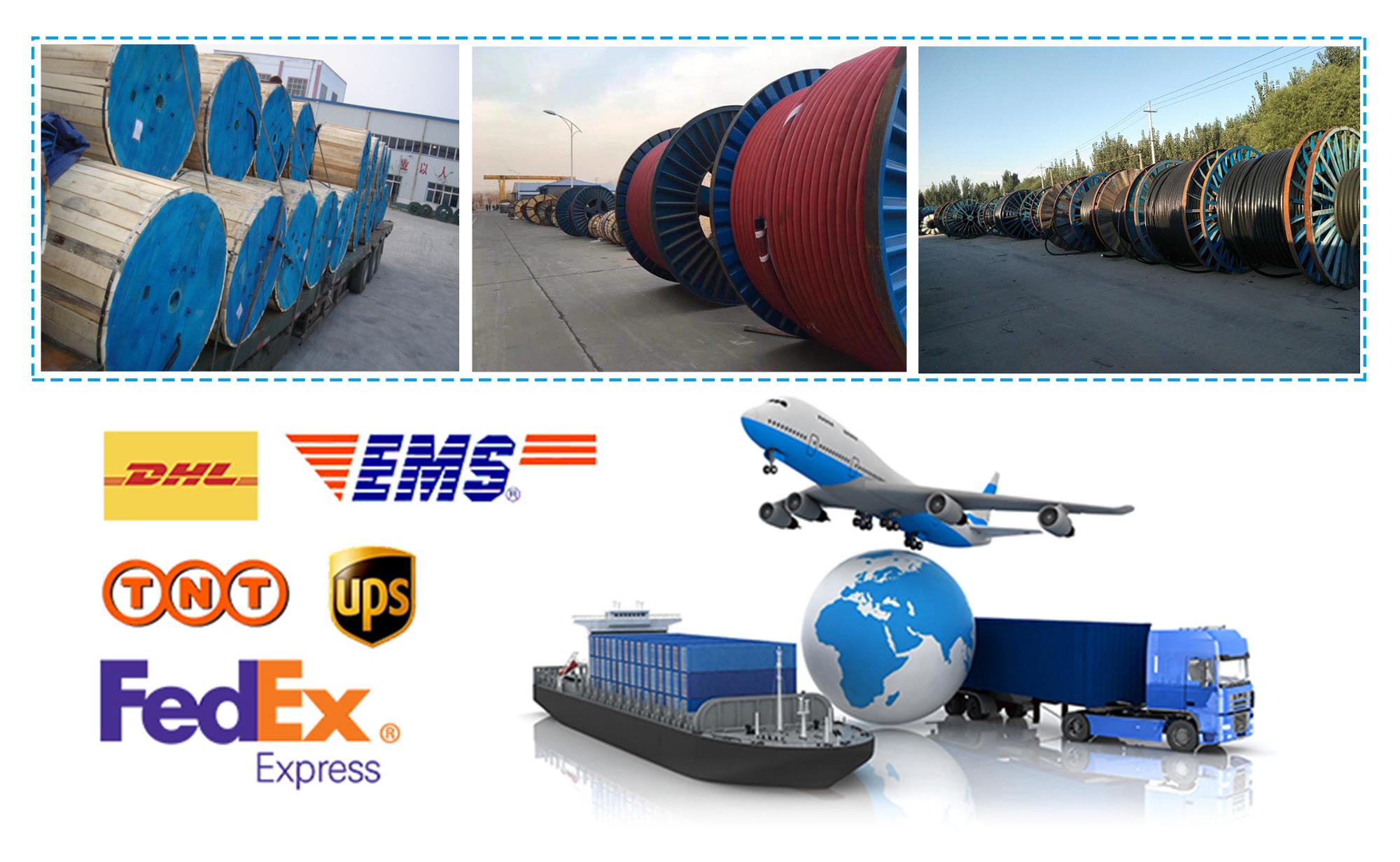

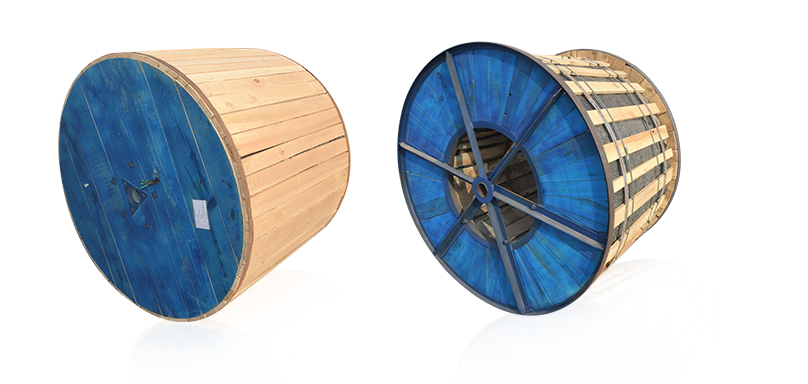

Packing

Contact

.jpg
