Flexible pure copper conductor cpe insulated underground MYP mining power cable

wechat

Collect

产品编号 MCP 3*95+1*25

DETAILS

Product description

1.Standard:MT818.5-2009

2.Application:

a.This product is suitable for rubber insulated rubber sheath soft cable for coal mine mobile equipment with rated voltage 0.38/0.66KV,0.66/1.14KV.

b.The rated operating voltage(U0/U) is 0.38/0.66KV,0.66/1.14KV,respectively.

c.The minimum bending radius of the cable is 6 times the diameter of the cable

d.The cable core should be well grounded

3.Type,Name and Application of cable

Type	Name	Application
MY-0.38/0.66	Mobile rubber soft cable for coal mines	Power connection of various underground mobile coal mining wquipment with rated voltage 0.38/0.66KV
MYP-0.38/0.66	Mobile shielded rubber sleeve soft cable for coal mines
MYP-0.66/1.14	Mobile shielded rubber sleeve soft cable for coal mines	Power connection of various rated voltage 0.66/1.14KV underground mobile coal minimg equipment

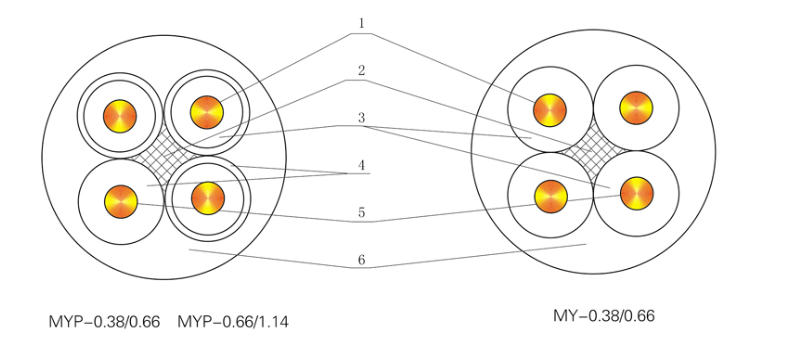

4.Product Structure Chart

Note:

1.Power wire core conductor fill

2.insulation

3.Semi-conductive layer

4.Ground core conductor

5.Cover

5.Size of rated voltage 0.38/0.66KV cable

Core number*conductor nominal cross section(mm2)		Nominal thickness(mm)		Cable outer diameter(mm)
Power core	Ground core	Power wire core insulation	Cover	MY-0.38/0.66	MYP-0.38/0.66
3*4	1*4	1.4	3.5	19.0-22.5	22.0-26.5
3*6	1*6	1.4	3.5	21.0-25.5	24.0-29.0
3*10	1*10	1.6	4.0	25.0-30.0	28.0-32.5
3*16	1*10	1.6	4.0	27.5-32.0	30.5-35.5
3*25	1*16	1.8	4.5	32.5-37.5	35.5-41.0
3*35	1*16	1.8	4.5	35.5-41.0	38.5-44.5
3*50	1*16	2.0	5.0	41.5-47.5	44.5-51.0
3*70	1*25	2.0	5.0	46.0-53.0	49.0-56.0
3*95	1*25	2.2	5.5	52.5-59.5	55.5-63.0
3*120	1*35	2.2	5.5	56.0-63.5	59.0-67.0
3*150	1*50	2.4	6.0	62.5-70.5	65.6-74.0
Note:The core section is the minimum section

jinanmiaotai

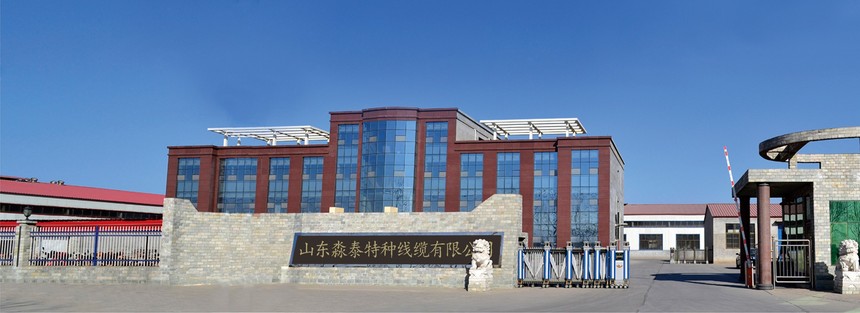

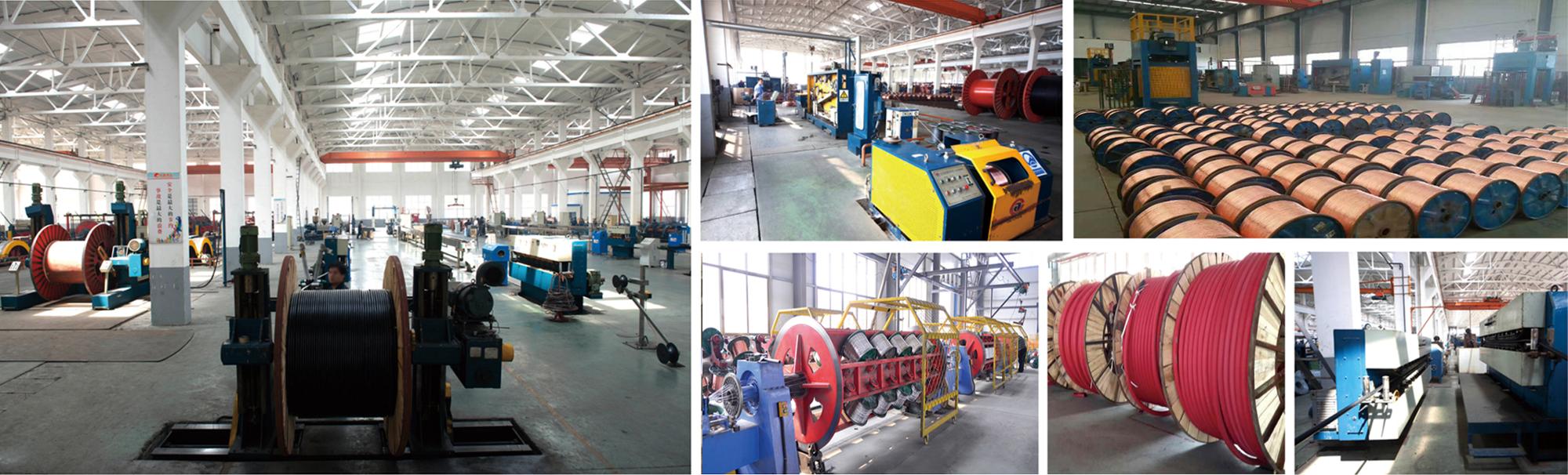

Factory

Shandong Miaotai Special Cable Co.,Ltd is a modern enterprise that integrates the sale,production and service of wire and cable.Our products mainly include mineral cable,mineral fire cable,power cable,Acorn cable,control cable and new environmentai protection aluminum alloy cable and other cable products.The company has established a long-term and stable cooperative relationship with many agents and retailers.The company's products are popular in more than 30 provinces and cities in the North and South of the Yangtze River due to their variety,full specifications,excellence in quality,and good service.In addition,we cooperate with service logistics companies.Theability to transport is very guaranteed. We have the ability to design and produce all kinds of wires and cables according to your special requirements.
